featured used equipment

Model - JTAS-10DX

pricing and Specs Coming Soon

3 HP, 220V

Max Inlet Size: 8"

2830 CFM

Bag Size: 19" x 33"

Impeller: 13" Balanced Steel

2 Available

G9740Z 20" 7-1/2 HP 3-Phase Planer w/ Spiral Cutterhead

This 20" planer is built for Extreme Duty!

Weighing a massive 1678 pounds, with power up/down control for the table and variable-speed feed, there's nothing you can't throw at this machine.

The G9740Z 20" 7-1/2 HP Planer features power-driven, adjustable bed rollers, segmented chip breaker, and a 6-row spiral cutterhead with 144 indexable carbide inserts for the best possible finish.

Each insert can be rotated up to three times to expose a new sharp edge for superior finish.

Reducing the cut to the size of a single insert makes for a cleaner cut and reduces noise compared to the traditional straight knife cut.

SPECIFICATIONS:

• Main motor: 7-1/2 HP,      220V/440V*, 3-phase, 20A/10A
• Feed motor: 1 HP
• Table elevation motor: 1/2 HP
• Maximum stock width: 20"
• Maximum stock thickness:      9"
• Minimum stock thickness:      1/4"
• Minimum stock length: 10"
• Maximum cutting depth:      3/16"
• Cutterhead diameter:      4-5/8"
• Cutterhead type: 6-row spiral,      144 inserts
• Insert size & type: 14mm x      14mm x 2mm, 30° indexable carbide
• Cutterhead speed: 5000 RPM
• Feed rate: Variable speed,      20–40 FPM
• Table size: 20-1/8" x      35-3/8"
• Dust port size: 5"
• Footprint: 28" x 38"
• Overall dimensions:      38-1/2" W x 353/8" D x 42-1/2" H
• Approx. shipping weight: 1765      lbs.

G9740Z 20" 7-1/2 HP 3-Phase Planer w/ Spiral Cutterhead

This 20" planer is built for Extreme Duty!

Weighing a massive 1678 pounds, with power up/down control for the table and variable-speed feed, there's nothing you can't throw at this machine.

The G9740Z 20" 7-1/2 HP Planer features power-driven, adjustable bed rollers, segmented chip breaker, and a 6-row spiral cutterhead with 144 indexable carbide inserts for the best possible finish.

Each insert can be rotated up to three times to expose a new sharp edge for superior finish.

Reducing the cut to the size of a single insert makes for a cleaner cut and reduces noise compared to the traditional straight knife cut.

SPECIFICATIONS:

• Main motor: 7-1/2 HP,      220V/440V*, 3-phase, 20A/10A
• Feed motor: 1 HP
• Table elevation motor: 1/2 HP
• Maximum stock width: 20"
• Maximum stock thickness:      9"
• Minimum stock thickness:      1/4"
• Minimum stock length: 10"
• Maximum cutting depth:      3/16"
• Cutterhead diameter:      4-5/8"
• Cutterhead type: 6-row spiral,      144 inserts
• Insert size & type: 14mm x      14mm x 2mm, 30° indexable carbide
• Cutterhead speed: 5000 RPM
• Feed rate: Variable speed,      20–40 FPM
• Table size: 20-1/8" x      35-3/8"
• Dust port size: 5"
• Footprint: 28" x 38"
• Overall dimensions:      38-1/2" W x 353/8" D x 42-1/2" H
• Approx. shipping weight: 1765      lbs.

Dantherm 10 hp Dust Collector

With Waste Hopper

New Filter Bags

Continuous and versatile solutions for quality machining are the distinctive features of stefani kd.
All you would expect from an edge banding machine: the use of EVA and Polyurethane glue thanks to the SGP glue pot, machining units with electronic axes allowing the automatic set up for 2 different radii, infinite thin edges and solid wood up to 12 mm.

It is the ideal edge bander for all those companies that need to produce many panels for both small and large batch production.

Machine Price $69,500.00

Shipping Costs $ 2,650.00

Set up and Training $ 2,850.00

Priced at $ 75,000.00 FOB Central, FL

The ultimate solution for high-quality dovetail joinery. This state-of-the-art machine is designed to streamline the production process, providing unmatched precision and efficiency for woodworking professionals.

Homag "Edgeteq S-200 OPTIMAT KDN 110" Automatic Edgebander w/Premill

70 mm minimum panel width

8 mm - 40 mm panel thickness

0.3 mm - 3 mm coiled edgebanding thickness

0.4 mm - 3 mm strip edgebanding thickness

Touch screen controller

Edgebanding infeed table

Guillotine

Two (2) motor premill unit

Glue unit with glue pot and roller

Pressure zone

     One (1) driven roller

     Two (2) idle rollers

Two (2) motor end trimming unit

Top/bottom trimming unit

     Tiltable

Top/bottom profile scraping unit

     External collection box

Top/bottom flat scraping unit

Sound enclosure

External electrical transformer


Horizonal Position Lock Dowel


Horizonal Position Lock Dowel


Standard Features

• Anodized aluminum sliding table with hardened steel guides
• Self Braking Motor
• Separate 1 hp scoring motor
• Tilting arbor from 0 to 45 degrees
• Mechanical tilt indicator
• External scoring saw adjustment with stops
• Slider locks anywhere to the right of the blade
• Overhead mounted blade guard with dust outlet
• Heavy industrial aluminum extrusion crosscut fence with flip stops
• "EZ Dial" Adjustable split scoring blade assembly
• Standard 1 year warranty (10 years on table guideway tolerances)
• Separate hand wheels on front for lifting and tilt of blade
• Eccentric Clamp
• Electrical control panel tilted 25 deg. for ergonomics

Specifications

Main Motor Horsepower9 HPScoring Motor Horsepower1 HPFixed Table Size41" x 25"Height of Worktable34.5"Rip Capacity51"Max Length of Crosscut with Scoring126"Main Blade Diameter / Arbor16" / 1"Scoring Blade Diameter / Arbor5" / 3/4"Arbor Speed - main / scoring4,000 / 8,500 RPMDust Outlets - main / overarm guard5" / 3.25"Depth of Cut - 0° / 45°5.5" / 3.8"Net Weight2,200 lbsElectrical Requirements36 AMPS @ 230v, 3 phDust Extraction1100 CFM


V48M28T75J

Primary 480 Delta

Secondary 208 Y

75 KVA

Weight 455#

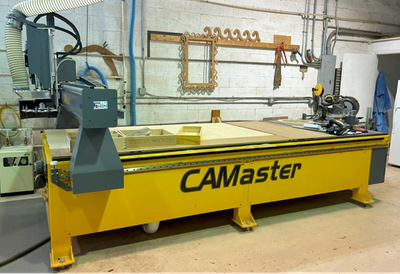

Additional Machine Details:Cobra Elite CNC Router-CR-510:-61" x 121" Cutting Area w/ 10" Z Clearance-Upgrade to a 12 HP HSD Automatic Tool changing Spindle-Cooling by electric fan. Ceramic bearings. Includes variable frequency drive(inverter) and necessary hardware, wiring, and control system upgrades to accommodate this option. Automatic Spindle ON/OFF control and speed control from G-code-Upgrade to a Rotary Carousel 10 Tool Holders, 10 Tool Cones and 10 Collets-Upgrade to an HSD 9 Position Boring Drill Bank-Upgrade to 5' x 10' Phenolic Table Top-Brushless AC Servo Drive System

This 2017 used edgebander manufactured by Brandt features a top and bottom profile quick change scraping unit. Click the button below for more information.
